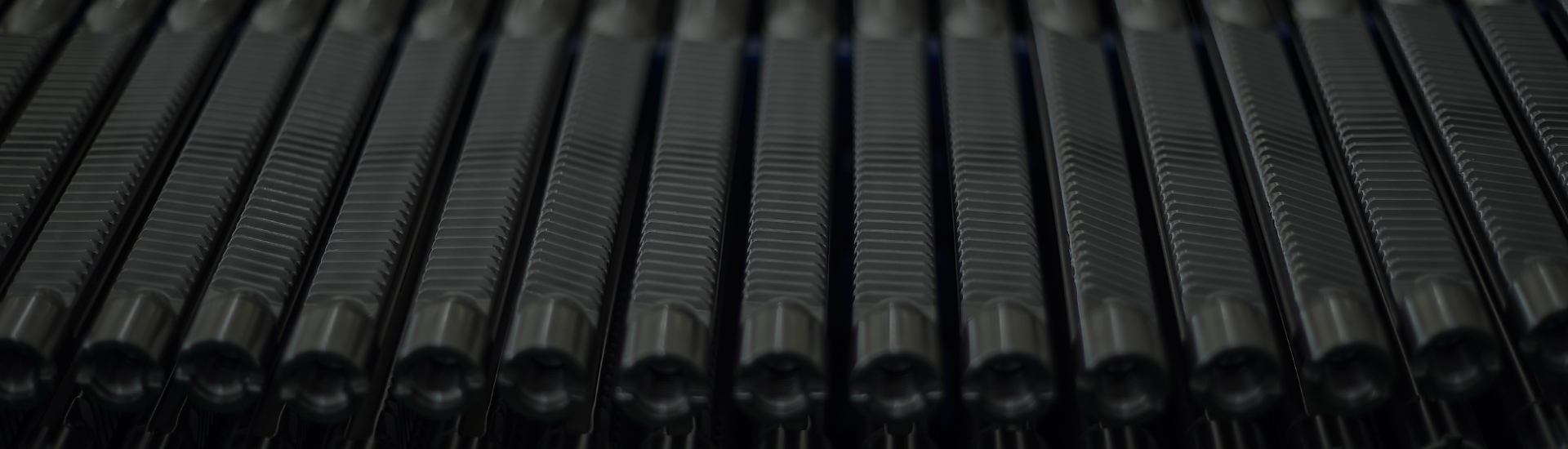

Rack Bar and Pinion Shaft
Rack Bars and Pinion Shafts are a key part of the steering device that controls the direction of the vehicle while driving.
01

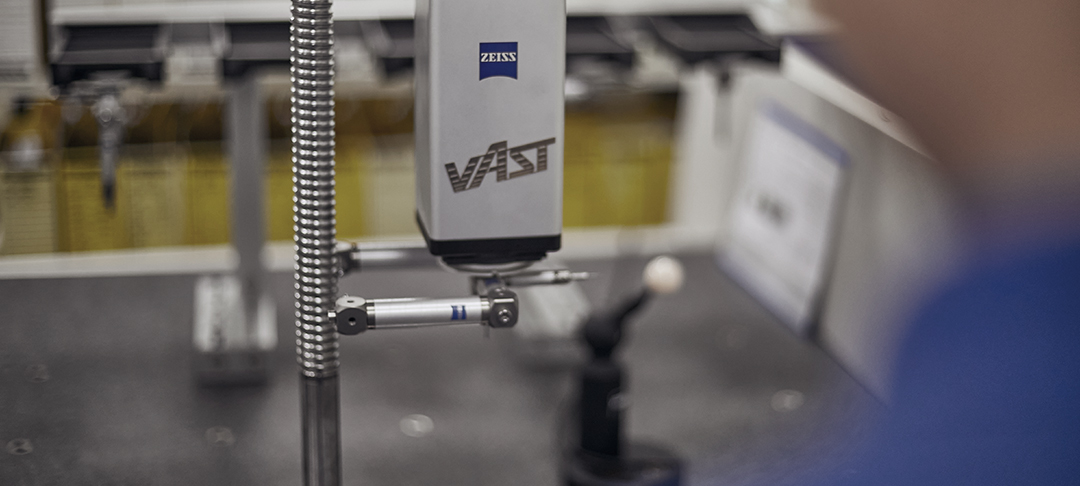

Strict quality and process control
SeAH Metal's rack bars and pinion shafts are used for automobile parts, and ensure safety and convenience through strict process control. Rack bars and pinion shafts that have passed our strict quality control are widely recognized for their excellent quality by world-famous automobile manufacturers.
02

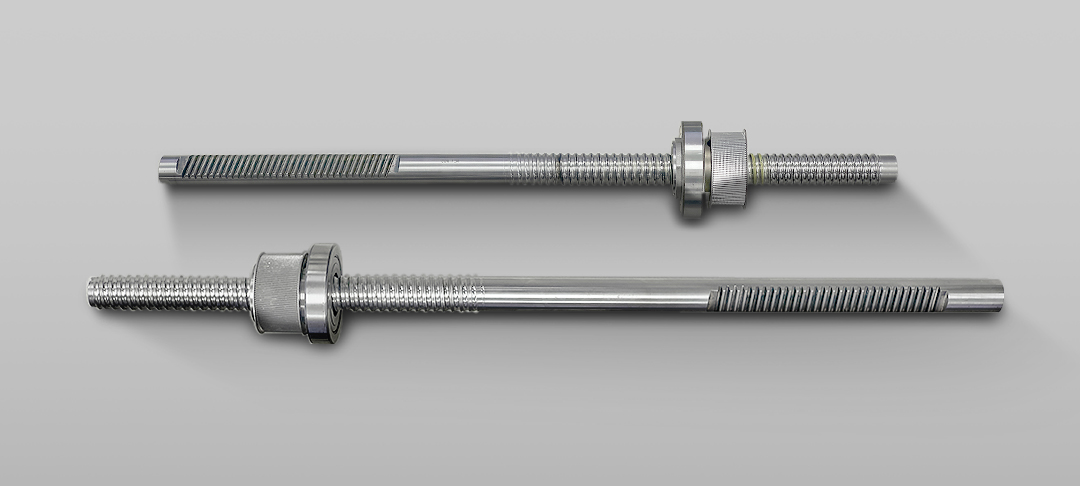

Next-generation automobile parts
R-EPS products are a steering device for electric vehicle and autonomous vehicles. SeAH Metal produces premium R-EPS products through meticulous quality control with high-efficiency facilities in line with customer requirements.
Main products
-

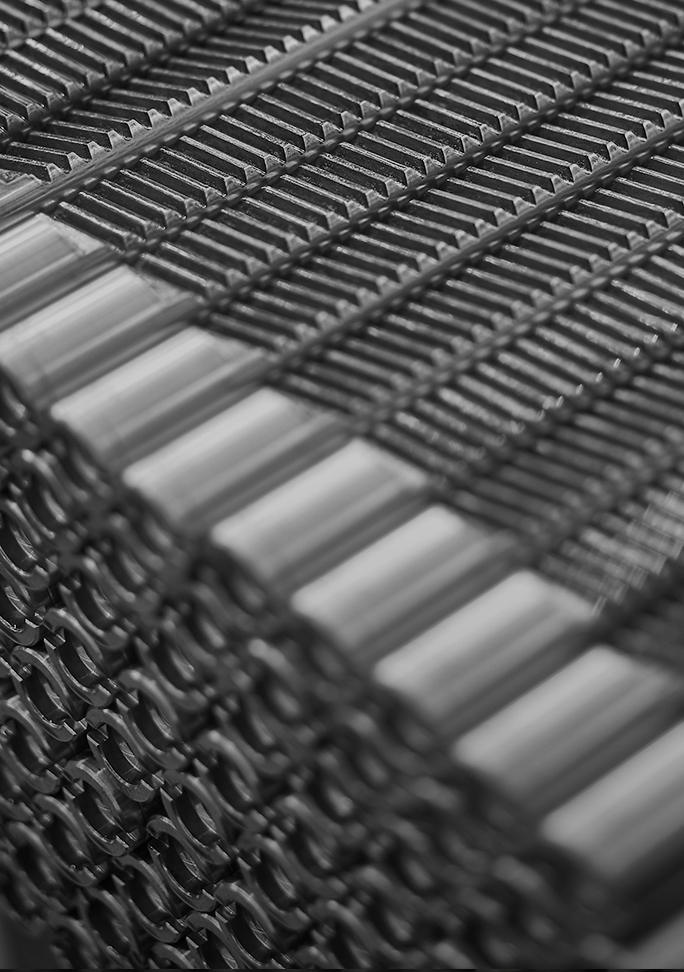

MANUAL RACK BAR
Specifications : Ø22.0-30.30
Length : 287~682mm
Applicable vehicle models : Total 16 types
-

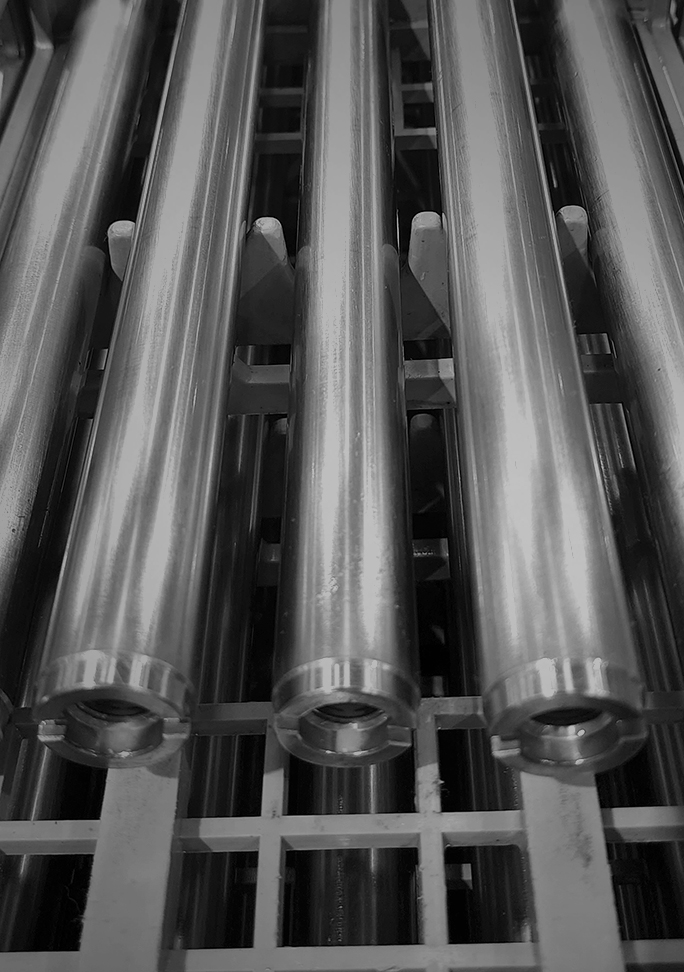

HPS RACK BAR
Specifications : Ø22.25~32.3
Length : 541~781mm
Applicable vehicle models : Total 56 types
-

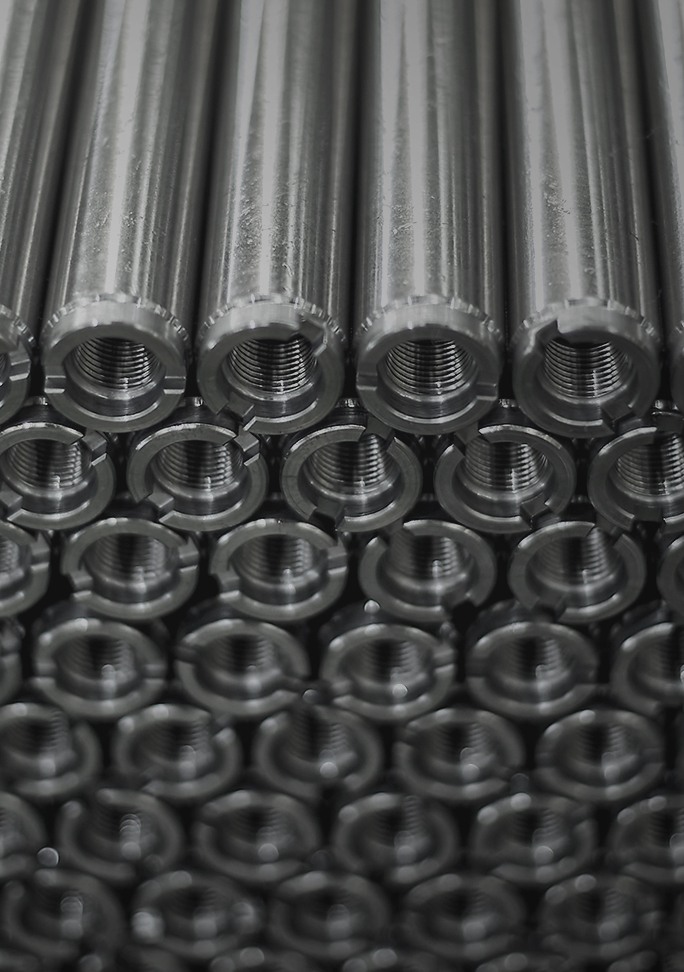

EPS RACK BAR
Specifications : Ø22.0-30.30
Length : 541.6~725mm
Applicable vehicle models : Total 26 types
-

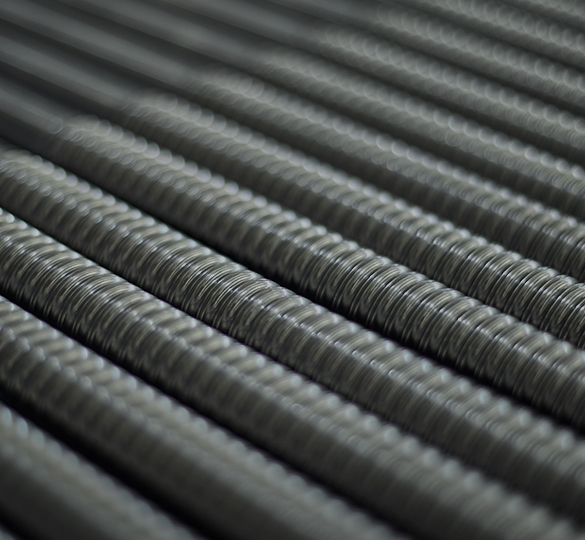

R-EPS RACK BAR
Specifications : Ø28, Ø30
Length : 700~788mm
Applicable vehicle models : Total 7 types
-

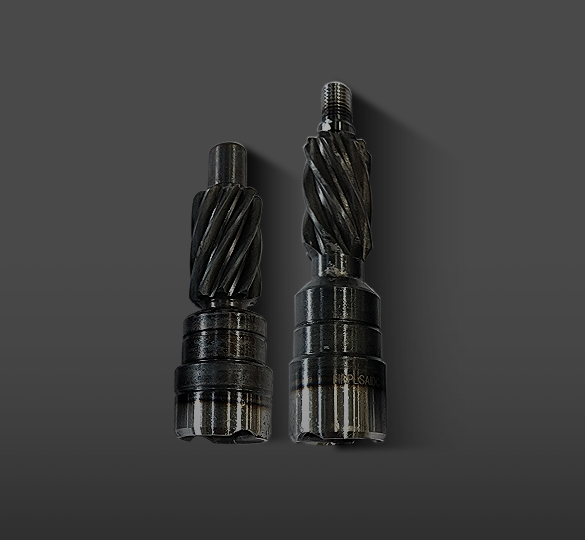

PINION SHAFT
Length : Ø81.3~122.9
Applicable vehicle models : Total 110 types
EPS products

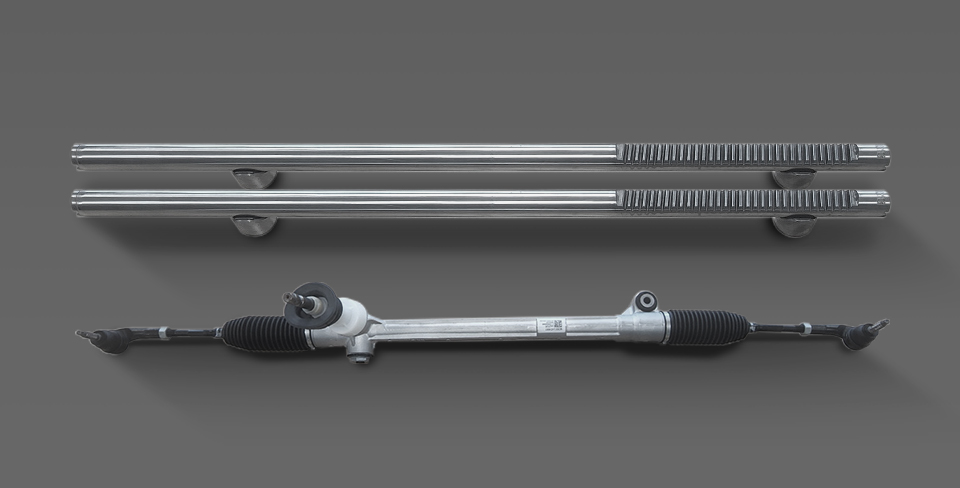

Electric Power Steering
A steering device that provides optimal steering performance by controlling the motor with ultra-precision instead of a conventional hydraulic system..
P-EPS (Pinion EPS): This is an EPS in which the motor is mounted on a pinion gear and is mainly used in medium and large vehicles.
C-EPS (Column EPS): The motor is mounted on the steering shaft of the wheel and is mainly used in medium-sized and smaller vehicles.

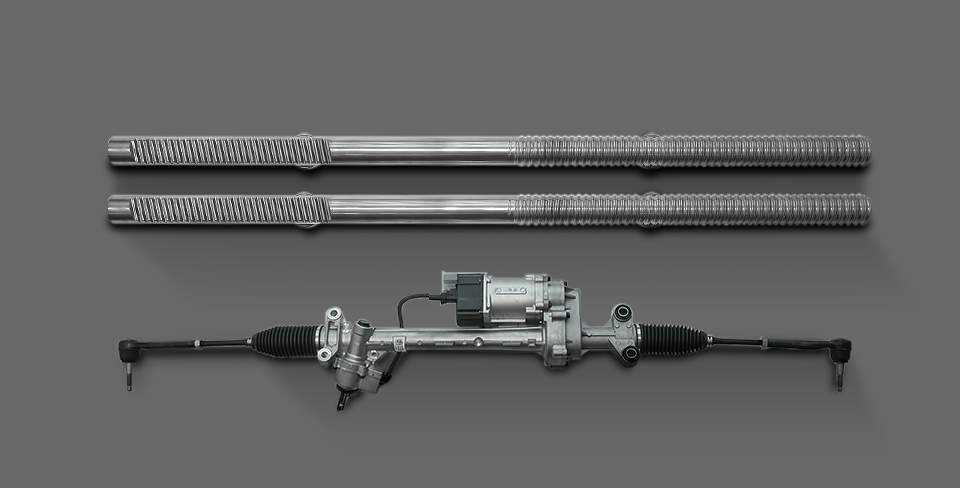

Rack Electric Power Steering
A steering device that provides optimal steering performance by controlling the motor with ultra-precision instead of a conventional hydraulic system.
As a belt-type EPS, the motor is mounted directly on the wheel axle.
Due to its low-friction, high-efficiency output characteristics, it is mainly used in mid- to large-sized vehicles.
-
Standard
min(mm)mix(mm)Applied Vehicles
-
22.00
541
584
4
-
22.25
287
584
4
-
24.25
540
715
6
-
26.30
560
721
4
-
28.00
611
725
7
-
30.30
618
716
1
-
Total
26
-
Standard
min(mm)mix(mm)Applied Vehicles
-
28.00
700
788
7
-
Total
7
Demand industry
Specifications for packing
Tray
Products (EPS) are loaded on plastic pallets
Cart
Products (HPS, MNL) are placed in mobile steel boxes
Tray
Products (P/SHAFT) are loaded on plastic pallets
